Help & Guides

Curtains & Roman blinds, made simple

Never ordered made-to-measure before? No problem. These short guides explain how to measure, which heading to choose, what the different linings do, and what all the trade words mean.

Guide 1

How to measure for curtains

You only need a metal tape measure and about ten minutes. Measure in centimetres, and write each figure down as you go.

  1. Decide where the track goesCeiling-fixed (the track sits on the ceiling) or wall-fixed (the track sits on the wall above the window). Decide this first, because you measure from wherever the track will be.
  2. Measure the width of the track, not the windowMake the track wider than the window so the curtains have somewhere to sit when they’re open (this is called the stack-back). For a hand-drawn track, add about 10% of the window width on each side. For example, a 200cm window needs about 20cm extra at each end, so a track of about 240cm. Open curtains then sit beside the window instead of covering the glass, so you get more light.
  3. Measure the dropThe drop is the length, from where the track will sit down to where you want the curtain to finish. If the floor isn’t level, measure at both ends and use the longer figure.
  4. Choose how long you want themSill length (just below the windowsill), floor-skimming (1–2cm off the floor) or puddled (a little extra fabric resting on the floor).
Before you order, check: ceiling height at both sides of the window, any coving, radiators, sockets or handles in the way, and a nearby power point if you’d like motorised curtains.
+10% +10% Window + 10% each side SillFloor Drop = track down to where the curtain finishes
Run the track past the window so open curtains don’t block the light.
Guide 2

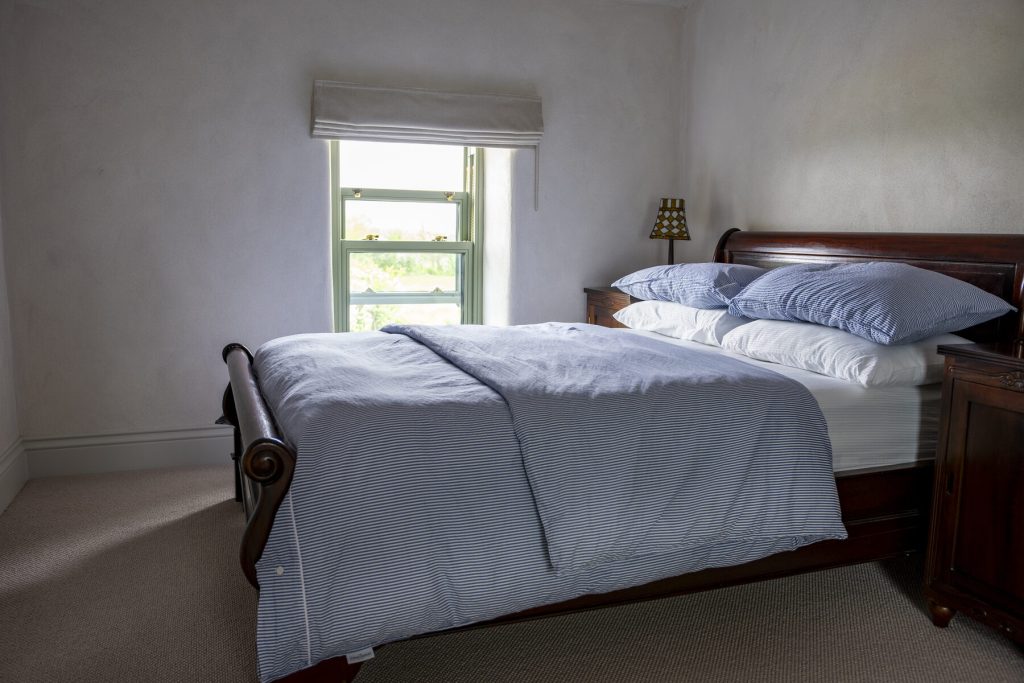

How to measure for Roman blinds

First decide whether the blind sits inside the window recess or outside it on the wall. Each is measured differently.

Inside the recess +5–8cm each side Outside the recess
Inside: neat and built-in. Outside: covers the whole window and blocks more light.

Fitting inside the recess

  1. WidthMeasure the width at the top, middle and bottom of the recess. Use the smallest figure, as recesses are rarely perfectly square.
  2. DropMeasure the height on the left, middle and right. Again, use the smallest figure.
  3. DepthCheck there’s enough depth in the recess for the blind’s headrail and brackets. If you’re not sure, ask us.

Fitting outside the recess

  1. WidthMeasure the window and add at least 5–8cm to each side so light doesn’t creep in around the edges.
  2. DropStart 5–8cm above the window and measure down to where you want the blind to finish: at the sill, just below it, or lower.
Also decide: which side you want the chain on (or whether you’d like a motor, which is great for hard-to-reach windows), and whether the room needs blackout lining.
Guide 3

Curtain heading styles

The heading is the top of the curtain: how it’s gathered and how it hangs from the track. It changes the whole look, from relaxed and modern to tailored and classic.

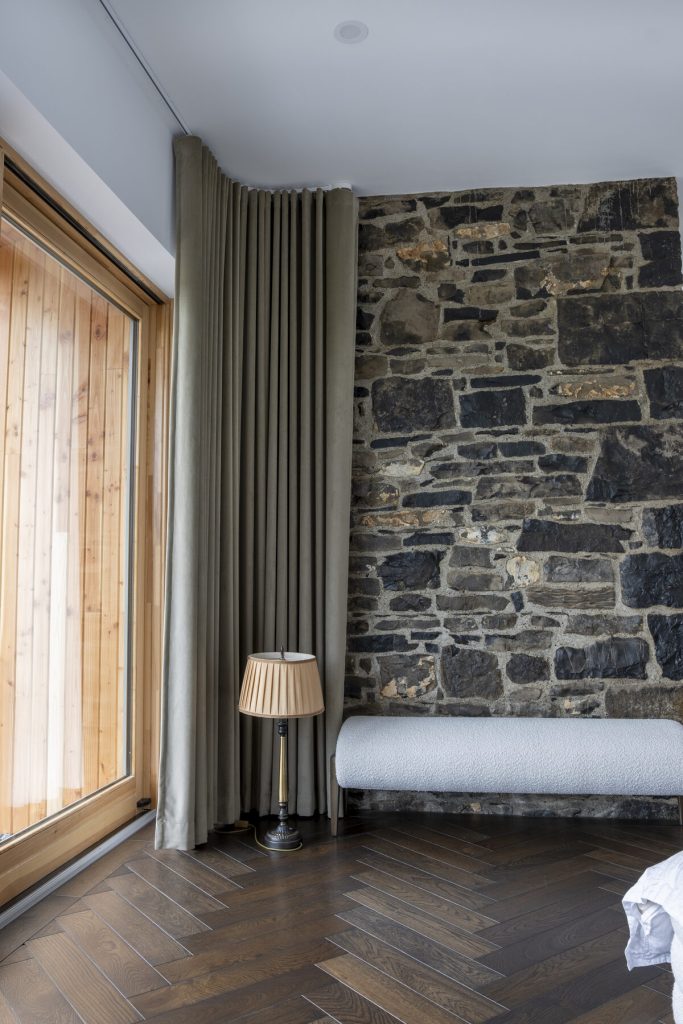

Wave

Modern · soft, even folds

The curtain glides in a smooth, continuous S-shape. Very popular for contemporary homes and voiles. Comes in 6cm or 8cm wave.

Pencil pleat

Classic · tightly gathered

Lots of narrow, even gathers along the top, like a row of pencils. A traditional, easy-going look that suits most rooms.

Pinch pleat

Tailored · single, double or triple

Fabric is pinched into neat groups of folds spaced along the top. Single pleats look crisp and simple, triple pleats look full and formal.

Eyelet

Relaxed · deep rolling folds

Metal rings are punched into the top of the curtain and it slides straight onto a pole. Simple, modern and easy to open and close.

Smocked

Decorative · patterned top

The top is gathered into a diamond pattern, like smocking on a dress. A pretty, decorative finish that suits period and cottage-style homes.

How much fabric? Every heading needs more fabric than the width of the track so the curtain looks full when it’s closed. That extra is called fullness: about 2 to 2.2 times the track width for wave, and up to 2.5 times for pleated headings. Don’t worry about the maths, because our order form works it out for you.
Guide 4

Unlined, dimout or blackout?

A lining is a second layer of fabric sewn to the back of your curtain or blind. It changes how much light gets through, how the fabric hangs, and how long it lasts.

LiningLight blockedBest forGood to know
Unlined●○○Voiles and sheers, kitchens, conservatories, anywhere you want light and privacyLight and airy. Sunlight shows the colour and texture of the fabric.
Dimout●●○Living rooms, dining rooms, home officesSoftens and reduces light without making the room dark. Helps protect the fabric from fading and gives a fuller hang.
Blackout●●●Bedrooms, children’s rooms, media roomsBlocks the light through the fabric for a darker room and better sleep. Our top pick for bedrooms.
Some fabrics already have a blackout backing built in, and some sheer fabrics can’t be lined. When that’s the case, the order form simply won’t offer you a lining.
Guide 5

What does “FR” mean?

You’ll see FR after some of our fabric names, like Bossa FR or Proof FR. It stands for flame retardant (sometimes called fire-resistant).

FR fabrics are made to resist catching fire and to slow down how quickly flames spread. That’s why they’re used in hotels, offices, airports and other public buildings, where the rules on fire safety are stricter.

For a family home, FR isn’t normally required, but some people choose it for peace of mind. Landlords, holiday lets and anyone fitting out a business should check what their building or insurer needs.

Quick answers

Do FR fabrics look different?
No. They look and feel just like any other fabric.

How do I find them?
On our fabrics page, use the Fire-Resistant filter to see only FR fabrics.

Need paperwork for a project?
Get in touch and tell us which fabric you’re using.

Browse our fabrics

Jargon buster

Curtain and blind words, explained

The words our team (and your stockist) might use, in plain English.

Drop
The length of a curtain or blind, from the track down to where it finishes.
Track width
How long the curtain track is, from end to end. Your curtains are made to fit it.
Stack-back
The space the curtains take up at the ends of the track when they’re open. On a hand-drawn track, allow about 10% of the window width on each side so open curtains sit off the glass.
Fullness
How much extra fabric is used so the curtain looks full and gathered when closed, for example 2× the track width.
Heading
The style of the top of the curtain, such as wave, pencil pleat, pinch pleat or eyelet.
Recess
The set-back space around a window, between the window frame and the face of the wall.
Reveal
The inside walls of the recess, either side of and above the window.
Face-fix
Fixing a track or blind to the wall above the window, outside the recess.
Top fix (ceiling fix)
Fixing a track to the ceiling, or to the top of the recess, instead of the wall.
Stack-back
The space the curtains take up at the sides of the window when they’re fully open.
Pair or single
A pair is two curtains that meet in the middle. A single is one curtain that draws to one side.
Voile (sheer)
A light, see-through fabric that gives privacy while still letting light in.
Dimout
A lining that reduces light without blocking it fully.
Blackout
A lining that blocks light through the fabric, ideal for bedrooms.
FR
Flame retardant: fabric made to resist catching fire and slow the spread of flames.
Glider
The small runner inside the track that the curtain hangs from and slides on.
Motorised
Curtains or blinds that open and close with a motor, using a remote, a switch or your phone.
